Container Dimensions


20`DV

Exterior Dimensions:

  • Length: 20'= 6096 mm
  • Width: 7' 9,25"= 2370 mm
  • Height: 8' 6"= 2591 mm

Interior Dimensions:

  • Length: 19' 5,75"= 5935 mm
  • Width: 7' 8"= 2335 mm
  • Height: 7' 9,75"= 2383 mm

Door Opening:

  • Width, mm 7' 8"= 2335 mm
  • Height, mm 7' 6,25"= 2292 mm

Weight and Volume:

  • Gross Weight: 52910 lbs = 24000 mm
  • Tare: 4585 lbs = 2080 mm
  • Payload: 48325 lbs = 21920 mm
  • CUBIC CAPACITY: 1197,25 cub.lbs. = 33,9 m³

40`DV

Exterior Dimensions:

  • Length: 40' = 12192 mm
  • Width: 8' = 2438 mm
  • Height: 8' 6" = 2591 mm

Interior Dimensions:

  • Length: 39' 3,25" = 12022 mm
  • Width: 7' 5,625" = 2352 mm
  • Height: 7' 10,25" = 2395 mm

Door Opening:

  • Width, mm 7' 8,25" = 2343 mm
  • Height, mm 7' 5,75" = 2280 mm

Weight and Volume:

  • Gross Weight 67200 lbs = 30480 mm
  • Tare: 8600 lbs = 3900 mm
  • Payload: 58600 lbs = 26580 mm
  • CUBIC CAPACITY: 2392 cub.lbs. = 67,7 m³

40`HC

Exterior Dimensions:

  • Length: 40' = 12192 mm
  • Width: 8' = 2438 mm
  • Height: 9'6" = 2895 mm

Interior Dimensions:

  • Length: 39' 3,25" = 12022 mm
  • Width: 7' 8,5" = 2352 mm
  • Height: 8' 10,25" = 2700 mm

Door Opening:

  • Width, mm 7' 5,75" = 2340 mm
  • Height, mm 8' 5,75" = 2585 mm

Weight and Volume:

  • Gross Weight 67200 lbs = 30480 mm
  • Tare: 9150 lbs = 4150 mm
  • Payload: 58050 lbs = 26330 mm
  • CUBIC CAPACITY: 2697 cub.lbs. = 76,4 m³

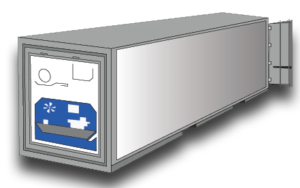

40`REF

Exterior Dimensions:

  • Length: 40' = 12192 mm
  • Width: 8' = 2438 mm
  • Height: 8' 6" = 2591 mm

Interior Dimensions:

  • Length: 37' 9,1" = 11555 mm
  • Width: 7' 5" = 2286 mm
  • Height: 7' 4,8" = 2280 mm

Door Opening:

  • Width, mm 7' 4,97" = 2285 mm
  • Height, mm 7' 3,65" = 2245 mm

Weight and Volume:

  • Gross Weight 67200 lbs = 30480 mm
  • Tare: 9634 lbs = 4370 mm
  • Payload: 57560 lbs = 26110 mm
  • CUBIC CAPACITY: 2126 cub.lbs. = 60,2 m³
